Коммерческие турникетные ворота: Типы, Стоимость, и как выбрать подходящее место для вашего места проведения
2026-04-01
The right commercial turnstile gate depends on your venue type — not just your budget or headcount. Speed gates suit Class A offices and high-traffic commercial lobbies. Flap barriers and swing gates cover standard commercial buildings, Розничная торговля, and campus deployments. Tripod turnstiles serve secondary entrances. Full height turnstiles protect commercial perimeters and government facilities.
Unit prices range from $150 for a basic tripod to $8,000 for a premium speed gate. Every primary commercial entrance also requires at least one ADA-accessible lane at 900mm clear width or wider.
This guide gives facilities managers, Застройщики недвижимости, and system integrators a 7-criteria comparison table, a commercial venue matching section, ADA compliance guidance, anti-tailgating overview, pricing context, и прямой путь к прямой стоимости с завода. For the full Ironman commercial deployment solution overview, начните сcommercial entry turnstile solution page.

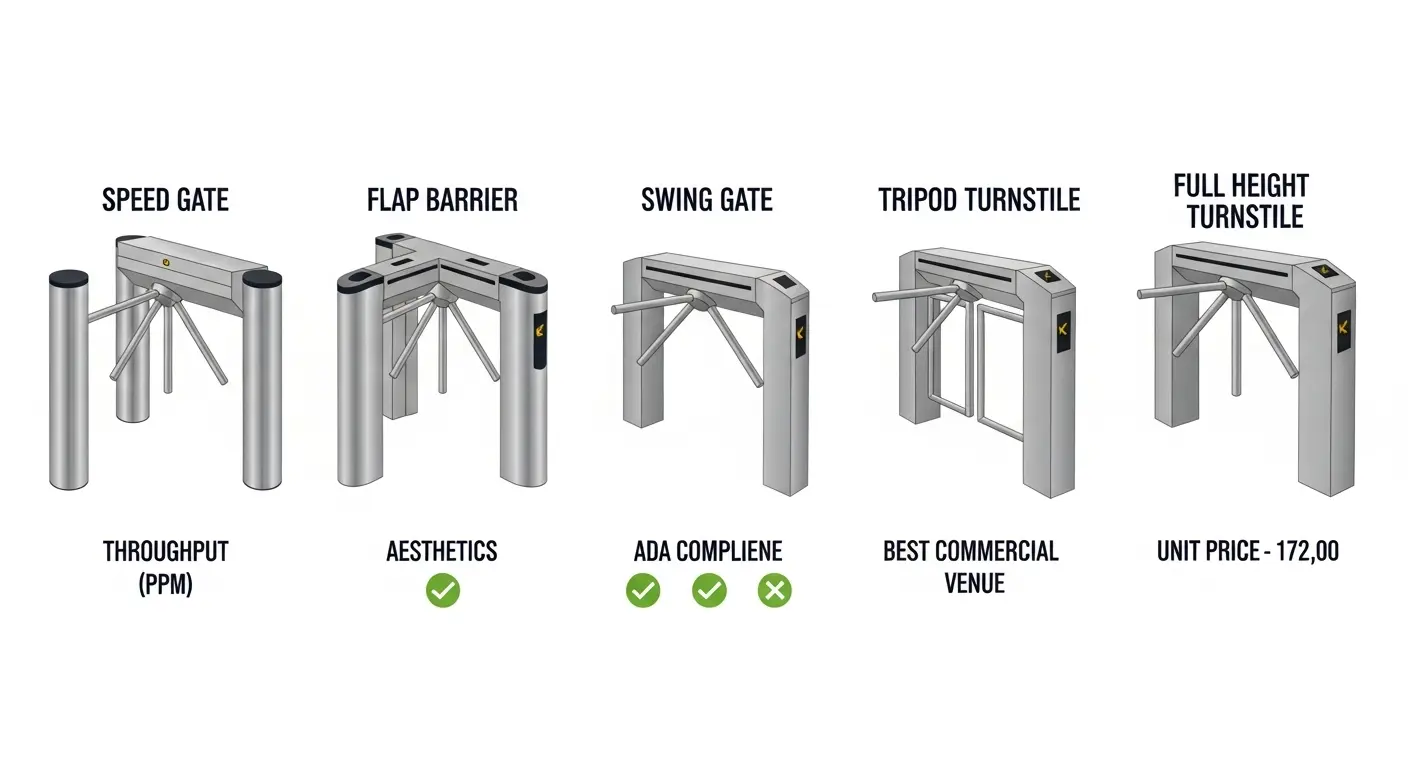

5 Types of Commercial Turnstile Gates — Compared Across 7 Criteria
Five gate types serve commercial deployments. Each fits a different venue context, and the table below compares them on the seven criteria that matter for a commercial specification.
| Тип ворот | Производительность | Эстетика | АДА | Безопасность | Анти-Тейлгейтинг | Best Venue | Ареал подразделения |
|---|---|---|---|---|---|---|---|
| Speed Gate | 50–80 ppm | Premium — glass, slim SS cabinet | Лучшие | Высокий | Стандарт + Ретранслятор тревоги | Class A office, premium hotel | $1,300–$8,000 |
| Барьер с закрылками | 40–60 ppm | Современность, low-profile | Умеренный | Средне-высокий | Стандарт | Standard commercial, managed building | $450–$6,500 |
| Поворотные ворота | 30–50 ppm | Гибкий, Настраиваемые | Good — wide variant | Терпимая | Необязательный | Розничный, SME office, кампус | $400–$2,500 |
| Триногий турникет | 15–20 ppm | Functional | Ограниченный | Терпимая | Not standard | Secondary entrances, Спортивные залы, События | $150–$1,400 |
| Полный рост | 25–40 ppm | Institutional | Ограниченный | Высший | Встроенный | Perimeter, правительство | $600–$4,000 |
Speed Gate and Flap Barrier — Premium and Standard Commercial
Speed gates lead across all commercial quality criteria. They deliver 50–80 ppm throughput, premium glass-panel aesthetics, a built-in ADA 900mm wide-lane option, and sensor-matrix anti-tailgating as standard. This makes them the default choice for Class A commercial buildings.
Flap barriers deliver comparable throughput at 40–60 ppm and a lower per-lane cost. They suit standard commercial buildings where budget is the primary constraint and a premium aesthetic is not required. Both speed gates and flap barriers open in 0.4–0.5 seconds per cycle.
Поворотные ворота, Тренога, and Full Height — Retail, Вторичная школа, and Secure
Swing gates suit retail and SME office deployments — lower cost, customizable finish, ADA-compatible wide-lane available, and a physical barrier suited to mixed pedestrian and visitor flow at lower volumes.
Tripod turnstiles are limited to secondary commercial entrances and venues where aesthetics are not a factor. At 15–20 ppm throughput, they are not suitable for any primary commercial entrance with more than 200 daily entries.
Full height turnstiles belong at commercial perimeters, government entrances, and high-security sites. Their floor-to-ceiling barrier prevents all tailgating by design. Their institutional appearance rules them out for client-facing commercial lobbies.
Match Your Commercial Turnstile Gate to Your Venue Type
Venue type determines gate type. The table below gives a direct recommendation per commercial venue.
| Commercial Venue | Рекомендуемые ворота | Дорожки | Основная причина |
|---|---|---|---|
| Class A office building | Скоростной гейт | 3–8+ | Производительность, эстетика, АДА, Анти-тейлгейтинг |
| Standard commercial building | Flap barrier or entry speed gate | 2–4 | Cost/throughput balance, Полоса ADA |
| Retail complex | Поворотные ворота + barcode/QR | 2–6 | Customer flow, visitor throughput, стоить |
| University campus | Speed gate or swing gate | 3–8 | Многокредитный сертификат, mixed traffic |
| Правительство / Высокий уровень безопасности | Полный рост + биометрический | 2–4 | Maximum physical security, контрольный журнал |
Office and Standard Commercial Buildings

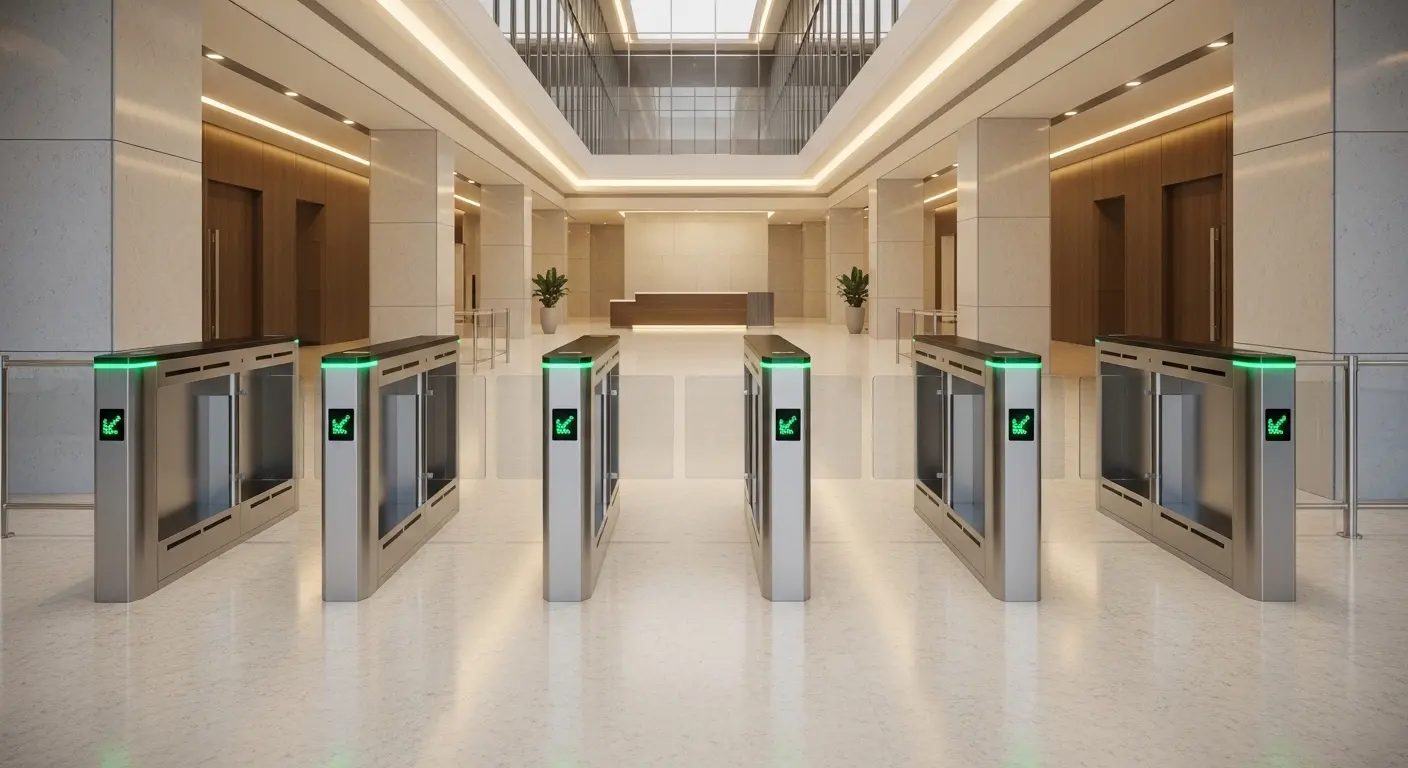

For Class A office buildings, the commercial speed gate is the correct specification. It handles morning peak flow, matches the architect's aesthetic brief, and includes a 900mm ADA-accessible wide lane within the same cabinet family. TheNetherlands multi-tenant office tower deployment shows a 4-lane speed gate configuration handling 2,400 daily entries across 20 floors without congestion — a reliable reference for comparable commercial projects.
For standard commercial buildings, a flap barrier at $450–$6,500 per lane delivers 40–60 ppm in a lower-profile cabinet. It is the right choice for buildings with under 1,000 daily entries and a mid-range lobby specification.
Retail and Mixed-Use Commercial Venues
Retail commercial turnstile gates serve a different function than office gates. They manage customer flow and reduce shrinkage at the entrance — not just credential-only access. Swing gates with barcode or QR credential reading are the standard retail configuration. Wide-lane clearance handles shopping bags and trolleys. Fast open cycles preserve customer experience. QR validation covers event access and members-only areas.
For the retail credential configuration using barcode and QR readers, см.Страница турникета с штрихкодом. Mixed-use commercial developments can run speed gates at the main lobby level for tenant access and swing gates at the retail floor separately — different credential types on the same site.
Campus and Government Commercial Deployments
University and corporate campuses require multi-credential commercial turnstile gates. The student and staff population uses RFID cards, мобильный NFC, QR visitor passes, and biometric readers across different access points. After reviewing commercial campus deployments for university clients across Asia Pacific, multi-credential compatibility was the primary specification criterion in every case. TheВорота контроля доступа к кампусу covers the multi-credential configuration used in those deployments.
Government facility entrances require the highest physical security level — full height turnstiles with biometric readers and a full entry/exit audit trail. For the biometric gate specification used in government commercial deployments, см.biometric turnstile gate page.
Commercial Turnstile Gate Pricing — What to Budget Per Lane
Price variation within each gate type reflects credential reader type, Отделка корпуса, ADA lane inclusion, and OEM custom design specification.
| Тип ворот | Ареал подразделения | 4-Lane Project Budget | Примечания |
|---|---|---|---|
| Speed Gate | $1,300–$8,000 | $5,200–$32,000 | Premium finish, Широкая полоса ADA, anti-tailgating included |
| Барьер с закрылками | $450–$6,500 | $1,800–$26,000 | Mid-range throughput/cost ratio |
| Поворотные ворота | $400–$2,500 | $1,600–$10,000 | Best value for retail and SME commercial |
| Триногий турникет | $150–$1,400 | $600–$5,600 | Secondary entrances only |
| Полный рост | $600–$4,000 | $2,400–$16,000 | Government and high-security perimeter |
Factory-direct OEM pricing removes the distributor and trading company markup. The price difference between a factory-direct quote and a reseller quote typically runs 30–200% on the same gate specification.
For the full product range and factory-direct pricing, см.commercial speed gate product page or browse the full turnstile gate range.
ADA Compliance for Commercial Turnstile Gates
Every primary commercial building entrance must include at least one ADA-accessible lane. Under the ADA Standards for Accessible Design (США), the minimum clear width is 32 дюймы (813миллиметр) for passage and 36 дюймы (914миллиметр) for standard approach.
| ADA Requirement | Standard Lane (550–600mm) | ADA Lane (900мм+) |
|---|---|---|
| 32" (813миллиметр) min passing width | ❌ | ✅ |
| 36" (914миллиметр) approach width | ❌ | ✅ |
| Fail-safe egress mode | Required | Required |
| Wheelchair and mobility aid | ❌ | ✅ |
Under NFPA 101 Кодекс безопасности жизни, any ADA lane on an egress route must operate in fail-safe mode — barriers retract and stay open during a power failure or fire alarm activation.
Speed gates deliver the most architecturally consistent ADA solution for commercial buildings. The 900mm wide-lane variant uses the same cabinet family, Финиш, and controller as all standard lanes in the gate row. For UK commercial buildings, Approved Document M sets equivalent requirements — 900mm satisfies both US ADA and UK Approved Document M in a single specification.
Anti-Tailgating in Commercial Turnstile Gates
Anti-tailgating is the most underspecified commercial turnstile gate feature. Based on our experience with commercial deployments across offices, Розничная торговля, и кампусы, it is the feature most consistently requested as a retrofit addition within 60 days of installation when not included from the start.
| Функция защиты от хвостового движения | Speed Gate | Барьер с закрылками | Поворотные ворота | Тренога | Полный рост |
|---|---|---|---|---|---|
| Матрица инфракрасного сенсора | ✅ Стандарт | ✅ Стандарт | Необязательный | ❌ | Н/Д |
| Audible + visual alarm | ✅ | ✅ | Необязательный | ❌ | Н/Д |
| Security workstation relay | ✅ Optional | ✅ Optional | Необязательный | ❌ | Н/Д |
| Cloud alert push | ✅ Optional | ✅ Optional | ❌ | ❌ | Н/Д |

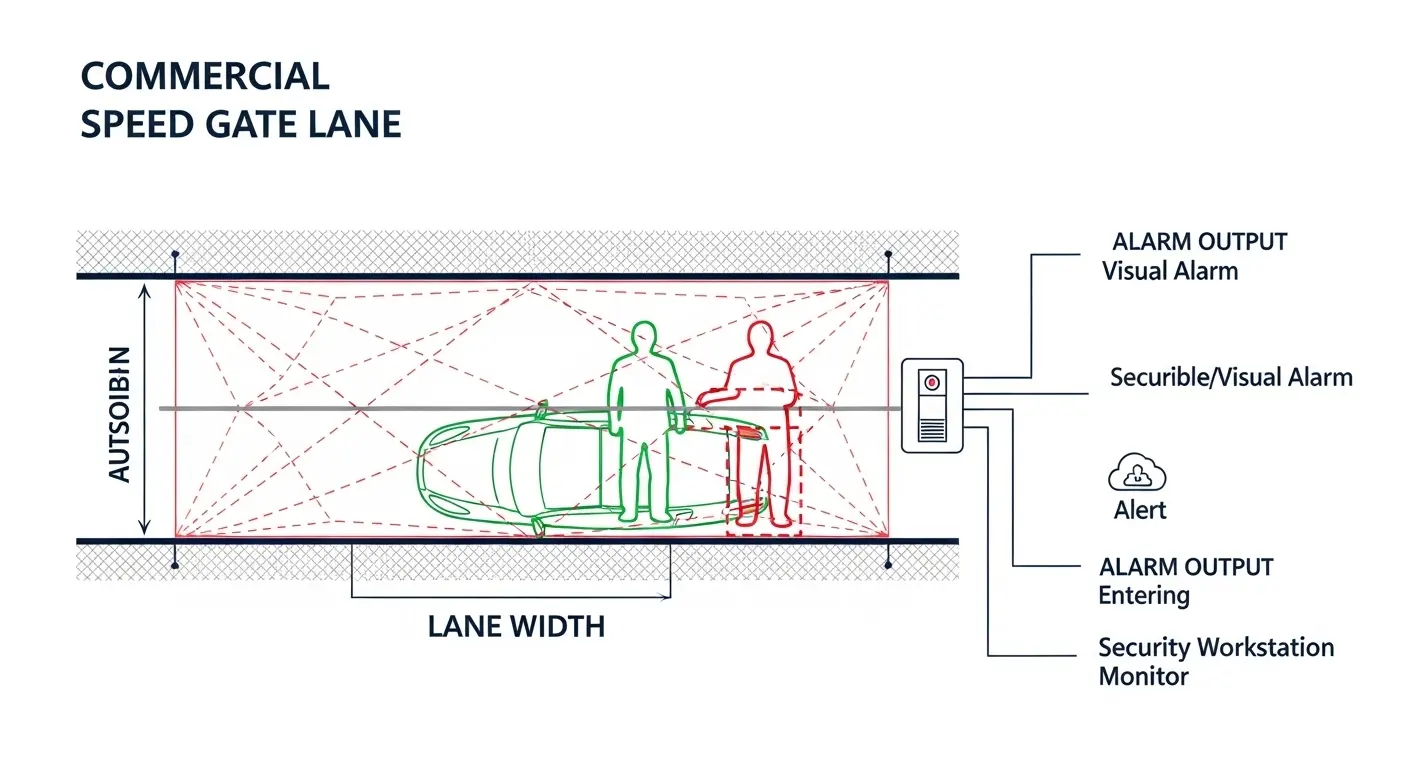

For commercial office and campus deployments, the infrared sensor matrix creates a detection grid across the full lane length. A second body entering before the barrier resets triggers a visual alarm, an audible alert, and an optional security workstation notification. Full height turnstiles make tailgating impossible by design — the floor-to-ceiling barrier allows only one person per cycle, removing the need for a sensor system.
Credential and Cloud Integration Options
Credential type determines the reader hardware, the access control integration, and the visitor management workflow at each commercial entry point. Confirm your credential types before finalizing the gate specification.
| Тип удостоверения | Commercial Use Case | Протокол |
|---|---|---|
| RFID-карта (Wiegand 34-битный) | Офисы, Кампусов, managed buildings | ACP panel |
| Mobile NFC | BYOD corporate, modern commercial | TCP/IP |
| QR / штрихкод | Управление посетителями, Розничная торговля, campus events | Облако + TCP/IP |
| Распознавание лиц | Премиальные офисы, правительство | TCP/IP, cloud/on-premise |
| Биометрический (Отпечаток пальца/радужка) | Правительство, финансировать, Высокий уровень безопасности | Wiegand or RS485 |
For cloud-based multi-site commercial deployments — regional office portfolios, retail chains, managed campuses — the cloud-based configuration allows remote access management and audit trail access from any location. См.cloud-based turnstile gate page for the configuration used in multi-site commercial projects.
For commercial venues with a high daily visitor volume, QR code visitor credentials eliminate card management overhead entirely. The credential is generated, delivered, and invalidated without staff involvement at the gate.
Getting a Factory-Direct Quote for Your Commercial Turnstile Gate
Four items are sufficient to receive a full itemized factory-direct quote within 12 Часы работы.
- Venue type and headcount: офис / Розничная торговля / кампус / транзит / правительство + daily entry count
- Gate type selection: use the venue matching table above to confirm your type and lane count
- Credential and ADA requirements: Тип квалификации, ADA lane count, anti-tailgating requirement, Интеграция с облаком
- Отправьте краткий обзор проекта: посетите commercial entry turnstile solution page — EC, ISO9001, FCC, and RoHS certification documents are provided with every first-contact response
Часто задаваемые вопросы
Q1: What is the best commercial turnstile gate for an office building?
The best commercial turnstile gate for an office building is a speed gate — it delivers 50–80 ppm throughput, premium glass-panel aesthetics, and a 900mm ADA-accessible wide-lane option within the same product family. For standard commercial buildings with tighter budgets, a flap barrier at $450–$6,500 per lane delivers 40–60 ppm in a lower-profile cabinet. The decision between a speed gate and a flap barrier comes down to the lobby's aesthetic brief and the daily throughput requirement. Both types are available with RFID, мобильный NFC, QR visitor, and facial recognition credential options.
Q2: How much does a commercial turnstile gate cost?
Commercial turnstile gate prices range from $150 for a basic tripod turnstile to $8,000 for a premium speed gate with custom finish and biometric reader. A standard 4-lane speed gate project budget runs $5,200–$32,000 per lane depending on finish, мандат, and ADA configuration. Flap barriers for a 4-lane commercial project typically run $1,800–$26,000. Price variation within each type reflects credential reader type, Отделка корпуса, ADA lane inclusion, and whether OEM customization is required. Factory-direct pricing from an OEM manufacturer removes the 30–200% reseller markup that applies to trading company quotes.
Вопрос 3: What types of commercial turnstile gates are available?
Five types of commercial turnstile gates are available: Скоростные ворота (50–80 ppm, Стеклянные панели, Class A offices), Барьеры с закрылками (40–60 ppm, современный, standard commercial), Поворотные ворота (30–50 ppm, гибкий, retail and SME), Турникеты с треногами (15–20 ppm, функциональный, Вторичные входы), and full height turnstiles (25–40 ppm, институциональный, perimeter and government). Each type suits a different commercial venue context — gate type selection should start with venue type and daily headcount, not product specification.
Q4: Do commercial turnstile gates need to be ADA compliant?
Да. Under the ADA Standards for Accessible Design (США), every primary commercial building entrance must provide at least one accessible lane with a minimum 32-inch (813миллиметр) clear passing width and 36-inch (914миллиметр) standard approach width. Any accessible lane on an egress route must operate in fail-safe mode per NFPA 101 — barriers retract and stay open during a power failure or fire alarm. Speed gates provide the cleanest ADA solution for commercial buildings: the 900mm wide-lane variant uses the same cabinet and finish as standard lanes, maintaining visual consistency across the full gate row.
Q5: How many turnstile lanes does a commercial building need?
Calculate lane count using the peak-window method: take total daily entries, divide by 15 (the minutes in the morning peak arrival window), then divide by the gate's throughput per minute. Add one lane for redundancy and one ADA-accessible lane per entrance. For a 600-person commercial office, this gives: 600 ÷ 15 = 40 Записи/минута ÷ 55 ppm = 0.73 Полос, rounded up to 2 standard lanes plus 1 ADA lane — a 3-lane configuration minimum. For retail and campus commercial venues with irregular peak patterns, add an additional lane buffer.
Вопрос 6: Can a commercial turnstile gate prevent tailgating?
Да. Speed gates and flap barriers include an infrared sensor matrix that detects a second person entering the lane before the barrier resets after an authorized passage. This triggers a visual alarm, an audible alert, and an optional relay output to a security workstation or cloud monitoring platform. Swing gates can include anti-tailgating detection as an option. Full height turnstiles prevent tailgating entirely by design — the floor-to-ceiling barrier allows only one person per operating cycle, making sensor-based detection unnecessary.
Three Decisions That Define Your Commercial Turnstile Gate Specification
Venue type matching, ADA lane configuration, and anti-tailgating specification — these three decisions determine whether your commercial gate system performs on day one and continues to perform as your building scales. Choosing by product spec instead of venue type is the most common and most costly commercial gate selection error.
