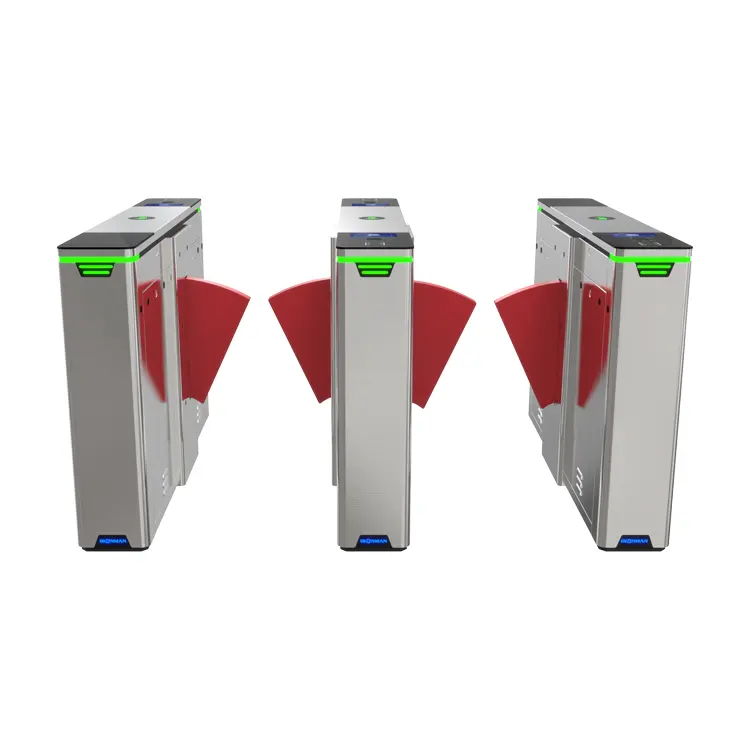

Барьер с клапанами контроля доступа
IM.XY.03
The Access Control Flap Barrier is an intelligent pedestrian management device designed for secure, эффективный, and controlled entry management in various facilities. It supports multiple authentication methods including RFID, QR-код, отпечаток пальца, and face recognition. With its fast opening speed, Бесшумная работа, and anti-tailgating technology, the flap barrier is ideal for office buildings, corporate lobbies, Станции метро, Аэропорты, and other high-traffic environments.The flap barrier also supports customizable branding, allowing clients to add customized logos, colors, and LED lighting effects to match their corporate identity or architectural style. Дополнительно, the system is designed for wide compatibility, integrating seamlessly with mainstream access control platforms, biometric terminals, time attendance systems, ticketing systems, and third-party software through RS485, TCP/IP, and dry contact interfaces.
-
Infrared Sensors: 12 Pairs
-
Ширина прохода: Available in 550mm, 600миллиметр, 900миллиметр
-
Overall Dimensions: 1500*300*1000 миллиметр (Custom Sizes Available)
-
Срок службы: Над 20 Миллион непрерывных циклов открытия и закрытия
-
Материал: 2.0mm SUS304 Stainless Steel + 2.0mm Corrosion-Resistant Electrolytic Plate
Распознавание лиц
Светодиодный дисплей
12 Пары инфракрасных детекторов
QR
Access Control Flap Barrier is a high-performance pedestrian access system built for controlled and secure entry in public buildings, Транспортные узлы, Корпоративные офисы, and other high-traffic environments. Engineered with industrial-grade materials and smart access logic, this unit ensures fast, accurate, and safe passage for authorized individuals.
With a service life of over 20 million cycles, this flap barrier is designed for long-term use in demanding settings. The housing is constructed from 2.0 mm SUS304 stainless steel combined with 2.0 mm corrosion-resistant electrolytic plates, offering both structural strength and extended resistance against wear, влага, and environmental factors.
The barrier integrates 12 pairs of infrared sensors, providing highly responsive anti-tailgating, anti-reverse, and anti-pinch detection. These sensors work in real time to monitor user movement, ensuring the flap only operates when a valid credential is presented.
Преимущества
- 12 pairs of IR sensors for precise intrusion, обратный, and safety detection
- High-grade materials: 2.0 mm thick SUS304 stainless steel and electrolytic plate
- 20 million tested opening/closing cycles for extended product lifespan
- Flap opening speed of 0.2–0.6 seconds ensures smooth, efficient access flow
- Поддержка RFID, биометрический, and QR code authentication via RS485/Wiegand/TCP-IP
- Passage widths of 550mm, 600миллиметр, or 900mm available for standard or wheelchair access
- Compact footprint with 1500×300×1000 mm dimensions (custom sizes optional)
- Emergency mode enables auto-flap retraction on power failure or fire alarm
- LED indicators and audio prompts guide entry and exit behavior
The flap panels are typically made of acrylic or polycarbonate, delivering both clarity and durability. Users are guided via LED directional arrows, and optional voice prompts can be added for enhanced user experience.
During normal operation, the flap barrier remains closed until it receives a valid signal from a connected access control system. In the event of an emergency or power outage, the system will automatically retract the flaps to allow free passage.
With robust construction, intelligent detection, and long service life, the Access Control Flap Barrier provides a scalable, reliable solution for modern pedestrian control infrastructure.
- Информация о продукте
- Спецификации
- Установка и использование
- Приспособляемость
- Вопросы и ответы
Информация о продукте
Функциональные особенности
-
Совместим с RFID, QR-код, отпечаток пальца, and face recognition systems
-
Equipped with 12 pairs of infrared sensors for accurate anti-tailgating and anti-pinch detection
-
Supports bi-directional access control with fast flap opening in 0.2–0.6 seconds
-
Automatically opens flaps in case of power failure or emergency for safe evacuation
-
Real-time alarm for unauthorized access attempts, reverse entry, or sensor blockage
-
LED direction indicators and audio prompts guide smooth pedestrian flow
-
Customizable passage widths of 550mm, 600миллиметр, and 900mm for standard or wheelchair access
-
Modular internal structure for easy maintenance and component replacement
-
Прочный 2.0 mm SUS304 stainless steel housing resists corrosion and physical damage
-
Integrates easily with third-party access control software via RS485, TCP/IP, or Wiegand
Спецификации
Основные технические характеристики
| Параметр | Спецификация |
| Материал для жилья | 2.0 mm SUS304 stainless steel + 2.0 mm corrosion-resistant plate |
| Срок службы | ≥ 20 Миллион непрерывных циклов открытия и закрытия |
| Opening Speed | 0.2 – 0.6 товары второго сорта |
| Traffic Throughput | Up to 40–50 persons per minute |
| Режимы аутентификации | RFID card, QR-код, отпечаток пальца, Распознавание лиц (необязательный) |
| Communication Protocols | RS485, Виганд, TCP/IP |
| Passage Width Options | 550 миллиметр / 600 миллиметр / 900 миллиметр |
| Электропитание | AC 100–240V, 50/60Гц |
| Working Voltage | DC 24V |
| Размеры | 1500 × 300 × 1000 миллиметр (Настраиваемые) |
| Emergency Mode | Auto-flap open on power failure or fire alarm |
| Рабочая температура | -20°C до +60°C |
Установка и использование
Установка и использование
Pre-installation: Ensure the floor is level and that embedded conduits for power and control lines are ready. Confirm passage layout (single/dual channel), power input availability, and network access points.
-
Fixing the Units: Position the barrier units accurately and fix them to the ground using anchor bolts. Align the passage width based on selected configuration (550миллиметр, 600миллиметр, or 900mm).
-
Проводка: Подключите питание, ground, and communication terminals. Follow the wiring diagram to connect the flap barrier with access controllers, readers (RFID/QR/Biometric), and emergency devices.
-
Powering On: Apply AC power (100–240V), the system will initialize. Use the control board or configuration software to set up device ID, motor direction, sensor calibration, and logic settings.
-
System Testing: Verify motor operation, flap response speed, IR sensor alignment, and integration with the access control system. Test all safety features including anti-pinch and fail-safe retraction.
-
Operation: During use, valid credentials open the flaps; the system automatically resets afterward. In emergencies, the flaps retract automatically for safe evacuation.
Приспособляемость
Адаптивность к глобальному рынку
- Напряжение: 100-240V широкодиапазонный вход (Глобальная совместимость с сетями)
- Языковая поддержка: 24/7 Служба в Англии
- Сертификация: ТОТ, FCC, ИСО
Вопросы и ответы
Вопросы и ответы
Q1: Is the flap barrier suitable for outdoor installation?
A: It is recommended for indoor or covered semi-outdoor use. Для полного использования на открытом воздухе, a waterproof version with higher IP rating is required.
Q2: Can the passage width be adjusted for wheelchair users?
A: Да, standard options include 900mm wide lanes which meet accessibility standards.
Вопрос 3: What is the typical lifespan of the motor mechanism?
A: The unit is rated for more than 20 million opening/closing cycles under normal use.
Q4: Does the system support dual authentication (Например.., карточка + QR)?
A: Да, it can be configured to require two-factor verification if your access controller supports it.
Q5: What happens in case of a power failure?
A: The flaps automatically open in fail-safe mode, allowing free passage for evacuation or emergency access.
